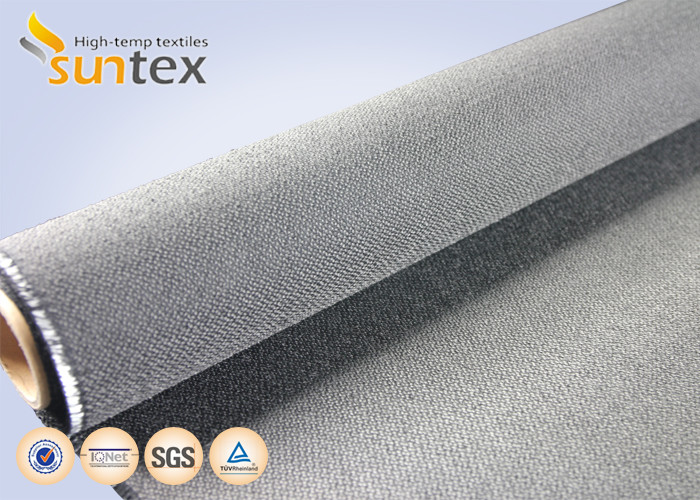

Black 30oz Twill Fire Resistant Fiberglass Fabric Welding Curtain Cloth
TGF880-AC225-3008 is a medium weight texturized fiberglass fabric, acrylic weave set finish- high add-on, provide good hand, minimal dust, and ease of application.
It’s used for flexible expansion joint, removable jackets, welding protection and other types of fire control systems.It supports temperature 5500C,self-extinguishes in 2 seconds.
Acrylic treatment reduces airborne fibers, enhances abrasion resistance. After treated,the machanical property improves a lot,become easy to sew, cut, and pouch holes.
It is human being & animal friendly, asbestos-free completely.
Technical Data:
| BASE FABRIC | Base fabric style No. TGF880 |
| | (Metric) | (English) | Test methods |
| Weave | 4 harness satin | Crowfoot | |
| Yarn | | | |
| Warp | ET9 480 tex | ETG 8.6 | |
| Weft | ET9 480 tex | ETG 8.6 | |
| Construction | | | |
| Warp | 10 ± 0.6 ends/cm | 25 ± 2 ends/inch | ASTM D 3775-96 |
| Weft | 8 ± 0.5 picks/cm | 20 ± 1 picks/inch | ASTM D 3775-96 |
| Weight | 880 ± 40 g/m2 | 25.8 ± 1.2 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.0 ± 0.1 mm | 0.039 ± 0.005 inch | ASTM D1777-96 |
| | |
| COATED FABRIC | Coating style No. AC225-3008 |
| Coating | Acrylic weave-set finish on both sides, high add-on. |
| Weight | 1020 ± 40 g/m2 | 30 ± 1.2 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.05 ± 0.1 mm | 0.043 ±0.005 inch | ASTM D1777-96 |
| Color | Black | |
| Temp resistance | 5500C | 10000F | |
Advantages:
1. Good mechanical properties
2. Oil retardant, chemical resistant
3. Easy to be holed, sewn and fabricated.
4. Excellent abrasion resistance property.
5. Excellent tensile strength.
6. Bears temperature up to 550 C degree
Main applications:
1. Fireproof protective barrier, fireproof curtain,welding blanket
2. Aerospace thermal ablation covers
3. Industrial metallurgy & furnace thermal insulation jackets
